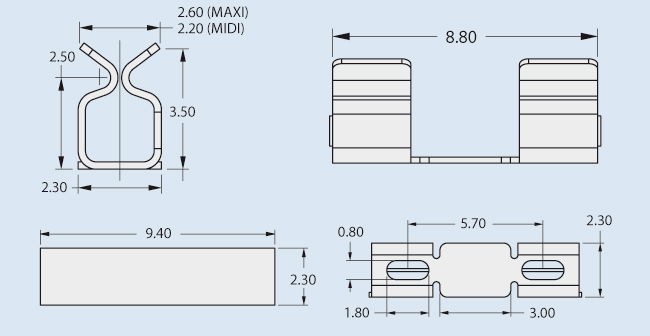

Large clip on (LC)大夹子
The Large clip on is used to mount PCB screening covers from the 1500 serie. This clip is used to mount on to the surface of the PCB (SMT) and offers a fast solution for assembling RFI/EMI shields to PCBs. This clip eliminates the need for through holes and post reflow operations on the PCB.
该大夹子用于装配1500系列的PCB屏蔽盖。这个夹子被用于装配到PCB(SMT)表面，提供了一个快速的装配RFI/EMI屏蔽到PCB的解决方法。这个夹子消除了在PCB上通孔和回流柱的需要。
The specificaties are the same as the medium clip, exept that thicker screening covers can be used. Screening covers can be placed in the clip up to 0.3 mm thickness. This clip can be supplied on reels of 1900 pieces.
规格和中等夹子相同，除了使用了更厚的屏蔽盖。屏蔽盖能被放置在夹子里可达0.3mm厚度。这个夹子的供货是以卷的形式，每卷1900只。

Material材料:
Beryllium Copper or铍铜合金或
Cupro-Nickel铜镍合金 (Beryllium-free)

Finish涂覆层:
Tin or Tin/Lead 锡或锡/铅

Packaging Format包装形式:
Tape & Reel and Pieces 带&卷和只

Reel Quantity每卷数量:

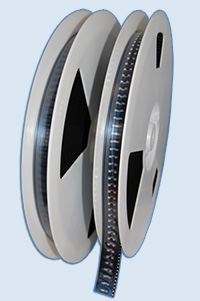

1,900 on a Ø330mm reel

Contact Resistance接触电阻:
20 milliohms max

Shield Thickness屏蔽厚度:
up to 0.30mm

Insertion force插入力 (max最大值):
3.0N

Withdrawal force 拔出力(max最大值):
1.0N

Example举例
When you order 8 Large clips (LC) please specify the partnumber as follow:
当你订购大夹子（LC）时，请指明零件号，如下：
