屏蔽解决方法

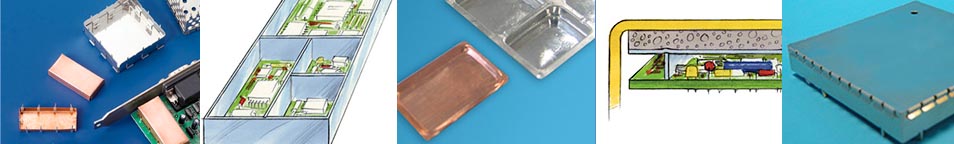

PCB shielding solutions屏蔽解决方法

Clip-on shielding system夹式屏蔽系统
1500 serie系列

Fixed serie固定系列
1600 serie系列

Drawn board level shields拉伸式板级屏蔽
1700 serie系列

1500 serie PCB shield

Metallisation 3838

Silver coating 3850

Properties特性
Less space taken up on the board。在板上占用很少的空间。
Excellent solution for series of 1 - 5,000 pieces。卓越的解决方法用于1-5000只的系列。
For heavy duty applications the lid can also be fixed by extra soldering between the lid and some of the pins。
对于重载应用,通过在盖子和一些插脚之间进行外加的焊接盖子也能被固定。

Properties特性
Can be manufactured by our CNC production system。通过我们的CNC生产系统能够进行制作。
Suitable for series of 100 -100,000 pieces
适合用于100-100,,00只的系列
Made according to your drawing
根据你的图纸制作。

Properties特性
Designed for seamless corners。设计用于无缝角。
Ultra-high frequency shielding超高频率屏蔽
Available in heights of 0.5 to 8 mm and sizes of 6 to 80 mm
可获得的高度为:0.5到8 mm。
尺寸:6到80 mm
Can be combined with ventilation
能与通风设备结合

Compartment shield分隔屏蔽
1800 serie

High volume production高容量生产



PCB compartment shield 1800 serie

PCB compartment shield 1800 serie



Properties特性
From 1.000-250.000+ items
Excellent EMI shielding

Properties特性
From 1,000 to 250,000+ items
Excellent EMI shielding



Mounting clips and pins for the PCB shields 用于PCB屏蔽的安装夹子和插脚


Small pin小引脚
Type P

Medium clips中等夹子
Type MC

Large clips大的夹子
Type LC

Small clip for attaching PCB shield

Shieldokit 3980

Large clip for attaching PCB shield

Properties特性
With a tinned pin带有一个镀锡的引脚
Can be soldered into the PCB at any available place around the screening cover能在任何可能的地方将屏蔽盖四周焊接进PCB
Big clamping range大的夹钳范围
Less accurate positioning is needed很少精确位置要求

Properties特性
The medium clip takes up 40% less space than the large clip
中等夹子比大的夹子占用40%少的空间。
Thickness of the screening cover can be 0.12 to 0.23 mm。屏蔽盖子的厚度:0.12 到 0.23 mm。
To mount on to the surface of the PCB (SMT)。装配在PCB(SMT)地表面上,
fast solution for assembling RFI/EMI shields to PCBs。快速安装RFI/EMI屏蔽到PCB板上。
Need for through holes and post reflow operations on the PCB
This clip can be supplied on reels of 5000 pieces
这个夹子的供应是以卷的形式,5000只。

Properties特性
Same as the medium clip, exept that thicker screening covers can be used。与中等夹子相同,除了使用了更厚的屏蔽盖子。
Screening covers can be placed in the clip up to 0.3 mm thickness。
屏蔽盖子能被放置在夹子里,可达0.3mm厚。
This clip can be supplied on reels of 1900 pieces
这个夹子的供应是以卷的形式,1900只。
