Antenna Kits AH天线套装

EMC Antenna Kits for compliance testing

Selection by Model Type型号选择:: Antenna Kits天线套装

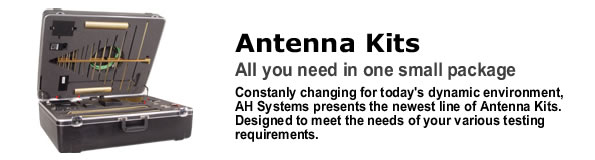

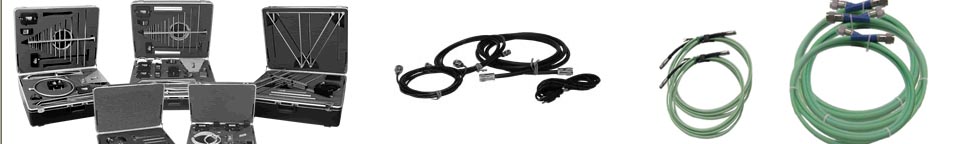

A.H. Systems offers 10 models of portable antenna kits.  Each kit provides all the reliable antennas, current probes and accessories needed to satisfy a wide array of customer requirements.  Each component has a specific storage compartment in the carrying case therefore, loss and breakage are virtually eliminated.  Cables, a tripod with azimuth and elevation head and a tripod carrying case accompany each antenna kit.  Click on a model below to learn more about it's characteristics and included antennas.
提供有10种形式的移动式天线套装。每一个天线套装包括许多可靠的天线、电流探头和需要的附件,完全满足用户的广泛要求。每一个组件在运输箱中都有一个指明的存储空间,因此,在实际上排除了遗失和破损的可能。另外,每一个天线套装都包括电缆、一个带有方位角和俯仰头的三脚架和一个三脚架运输箱。点击下列的型号可以看到每个套装的特点和包括的天线。

Model

Frequency Range频率范围

Description说明

AK-2G

20 Hz - 2 GHz

Antenna Kit - Multiple Antennas

AK-4G

20 Hz - 4 GHz

Antenna Kit - Multiple Antennas

AK-7G

20 Hz - 7 GHz

Antenna Kit - Multiple Antennas

AK-18G

20 Hz - 18 GHz

Antenna Kit - Multiple Antennas

AK-26G

20 Hz - 26.5 GHz

Antenna Kit - Multiple Antennas

AK-40G

20 Hz - 40 GHz

Antenna Kit - Multiple Antennas

AK-285T

1 KHz - 18 GHz

Shielding Effectiveness Antenna Kit, Transmit Antennas屏蔽效能天线套装,发射天线

AK-285R

1 KHz - 18 GHz

Shielding Effectiveness Antenna Kit, Receive Antennas屏蔽效能天线套装,接收天线

AK-HFR

100 Hz - 30 MHz

H-Field Rod Antenna Kit。 H场棒天线套装

AK-571-4

700 MHz - 40 GHz

Double Ridge Guide Horn Antenna Kit双脊喇叭天线套装

Bilogical Antenna Kits双锥对数复合天线套装

A.H. Systems' 3 models of Bilogical Antenna Kits operate efficiently over the frequency range of 25 MHz to 7 GHz.  For rapid deployment along with the mobility of small package, these Bilogical Antenna Kits provides an inexpensive solution to broadband applications.  Suitable for FCC, MIL-STD, VDE, TEMPEST, and immunity testing, each Bilogical antenna will provide reliable, repeatable measurements.  The ability to sweep in one trace makes the Bilogical antenna a versatile performer.
3个类型的双锥对数复合天线套件有效地运行频率范围:25MHz-7GHz。适合于FCC, MIL-STD, VDE, TEMPEST, and immunity testing抗扰度测试。

Model

Frequency Range

Description

AK-521F-2

25 MHz - 2000 MHz

Bilogical Antenna Kit

AK-521F-4

25 MHz - 4000 MHz

Bilogical Antenna Kit

AK-521F-7

25 MHz - 7000 MHz

Bilogical Antenna Kit

Tuned Dipole Sets可调偶极子天线组

A.H. Systems offers 3 tuned dipole sets manufactured per the FCC design. Maximum performance, portability (compact size and lightweight), and rapid deployment make each of the Tuned Dipole Sets a reliable standout for field testing.  Each component has a specific storage compartment in the carrying case therefore loss and breakage are virtually eliminated.  Cables, a tape measure, balun mounting clamp and carrying case accompany each Dipole Set. Click on a model below to learn more about it's characteristics and included antennas.
3种可调偶极子天线组。(按照FCC标准设计生产),高性能、便携(结构紧凑和重量轻)和快速展开的特点使这些天线组中的每一个天线成为一个可靠的、杰出的场测试设备。每一个组件在运输箱中都有一个指明的存储空间,因此在实际上排除了遗失和破损的可能。另外,每一个双极子天线包都包括电缆、一个测量卷尺和一个运输箱。

Model

Frequency Range频率范围

Description说明

TDS-535

25 MHz - 1000 MHz

Tuned Dipole Antenna Set

TDS-535-2

25 MHz - 1000 MHz

Tuned Dipole Antenna Set Double

TDS-536

VHF - UHF

Tuned Dipole Antenna Set, TV
