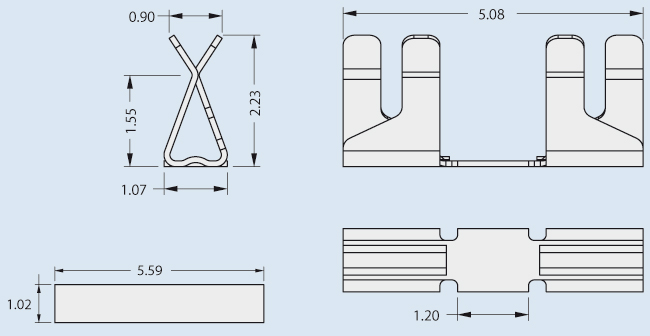

Medium clip on 中等夹子(MC)
The Medium clip on is used to mount PCB screening covers from the 1500 serie. This clip is used to mount on to the surface of the PCB (SMT) and offers a fast solution for assembling RFI/EMI shields to PCBs. This clip eliminates the need for through holes and post reflow operations on the PCB.
中等夹子用于装配来自1500系列的PCB屏蔽盖子。这个夹子被用于装配在PCB(SMT)表面和为装配RFI/EMI屏蔽到PCB提供了一个快速解决。这个夹子消除了在PCB上通孔和柱回流操作的需要。
This clip offers a great opportunity to do tuning and re-work after the assembly of the screening cover. Thickness of the screening cover can be 0.12 to 0.23 mm. This clip can be supplied on reels of 5000 pieces.
这个夹子在屏蔽盖装配之后提供了一个大的机会去做调整和返工。屏蔽盖的厚度能是0.12 to 0.23 mm。这个夹子的供货是卷的形式，每卷5000只。

The medium clip takes up 40% less space than the large version.与大夹子相比中等夹子占据的空间要少40%。

Material材料:
Beryllium Copper or铍铜或
Cupro-Nickel铜-镍 (Beryllium-free)

Finish涂覆层:
Tin or Tin/Lead 锡或锡/铅

Packaging Format包装形式:
Tape & Reel and Pieces 带&卷和只

Reel Quantity卷数量:
5,000 on a Ø330mm reel

Contact Resistance接触电阻:
Mini: 40 milliohms max

Shield Thickness屏蔽厚度:
0.12 – 0.23mm

Insertion force插入力 (max最大):
5.0N (0.17mm shield)

Withdrawal force拔出力 (max最大):
0.35N

Example举例
When you order 8 Medium clips (MC) please specify the partnumber as follow:
当你订购中等夹子（MC）时，请指定零件号，如下列：
