Self-standing modular Faraday cage自立模块化法拉第箱
Superior screening of RF signals, e.g. for R&D, TEMPEST and Testing purposes. The modular Faraday cage is designed to meet or even exceed the vast majority of shielding requirements. The system is constructed of shielded modular panels, available in either standard-sized or custom-designed panels to meet exacting specifications in government, industry, research and development, university or hospital use. The system is completely self-standing (independent of the host building). The modular panels can be shipped and assembled by the customer or under supervision of our engineers, anywhere in the world.
较好的屏蔽RF信号，例如用于R&D, TEMPEST和测试目的。该模块化法拉第箱设计用于满足或甚至超出大多数的屏蔽要求。该系统由屏蔽的模块化板构建，可获得或者以标准尺寸或者定制设计面板以满足严格的规格在政府，工业，研究和开发，学校或医院使用。该系统是完全地自身-直立（不依赖于主体建筑）。该模块化面板能通过客户或在我们工程师监督下运输和装配，在世界各地。

Applications应用

1. RF measurements。 RF测量
2. EMC test labs。 EMC测试实验室。
3. Wireless product testing。 无线产品测试。
4. Server rooms。 服务器室。
5. TEMPEST / Sensitive information protection。 防信息泄露/敏感信息保护。
6. HEMP & EMP protection。 HEMP&EMP保护。
7. Neuroscience laboratories。 神经科学实验室。
8. Cellular communication devices。 蜂窝通信设备。
9. Immunity & emission test chambers。 抗干扰&辐射实验室。
10. Anechoic chambers 消声室
11. MRI rooms。核磁共振室。
12. Neurology lab。 神经学实验室。
13. etc...等等。

High shielding performance高屏蔽性能
The shielded enclosure consists of shielding panels made of 2mm MuFerro steel; the panels are galvanized which gives the enclosure excellent resistance to corrosion. Amucor 6800 gaskets between the panels help to maintain shielding attenuation. The modular shielding does not contain any wooden parts that could be adversely affected by variations in temperature or moisture. The panels provide high shielding effectiveness, maintain electrical continuity, and are corrosion resistant. This results in high levels of attenuation without deterioration.
该屏蔽室由2mm钼亚铁钢的屏蔽板组成。该板是镀锌的，以使壳体有卓越的耐腐性。Amucor 6800垫圈在板之间有助于保持屏蔽衰减。该模块化屏蔽不包含任何的木制部件以抑制温度变化或潮湿的影响。该板提供了高的屏蔽效能，维持电连续性，和耐腐蚀性。这个引起高水平的衰减而没有退化。

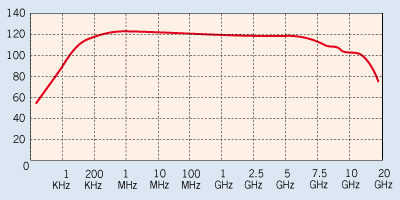

Shielding performance屏蔽性能 (dB)


Smooth exterior, functional interior平滑的外部面，实用的内部面
The panels are bolted together along their edges on the inside, leaving a smooth exterior. Lighting, bus bar and furnishings can be mounted directly on the bendings of the panel interiors. Versions for direct attachment of ferrite and RF pyramidal absorbers can also be supplied, to create an echo-free (anechoic) test chamber.
该板沿着内侧边缘用螺钉固定在一起，留下一个光滑的外表面。照明，总线和装饰等直接安装在面板内侧的弯曲部分。

Benefits好处

1. Self-standing construction 自立结构
2. High shielding performance without deterioration 高屏蔽效能没有衰退
3. Easy to mount with local skilled workers 本地的熟练工人很容易进行安装
4. Easy to modify, enlarge or reinstall 容易变更，扩大或重新安装
5. Many sizes from stock, specials within a few weeks 许多尺寸有库存，特殊指定的也在几周内交货
6. Optionally supplied as a kit for assembly by the user 由用户作为一套组建供应
7. Optionally with 10 years guarantee & maintenance 10年质保与维护

Options选件
All options listed directly below can be customized, e.g. with an automatic sliding door, double leaf door, customized shielded ventilation panels, different dimensions, etc.
所有的选件列明如下，可以被定制，例如：带有一个自动滑门，双叶门，定制的屏蔽通风板，不同的尺寸，等等。

1. Shielded honeycomb ventilation panels 屏蔽的蜂窝通风板
2. Shielded doors 屏蔽门
3. Shielded water piping and gases 屏蔽的水管线路和气体
4. Lightweight version 轻量版
5. Entry panel fitted with: 入口板装配有
6. Power filters电源滤波器, single单相 +N or three phase三相 +N
   (specify amps, voltage and frequency指定电流，电压和频率)
7. Feed through signal filters 馈通信号滤波器
8. Wave guides for passage of fiber-optic cables 用于光纤电缆的波导
9. Feed trough penetration馈通穿过 (e.g. SMA or BNC connector连接器)
10. Grounding bolt地脚螺栓

Easy modification容易更改

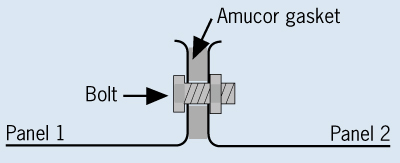

The modular Faraday cage can be modified, enlarged or reinstalled very easily with conventional hand power tools. Corner panels are identical to the intermediate joints, and have reliable shielding attenuation equal to that of the rest of the enclosure. Examples of panel joints are shown below.
模块化法拉第箱体能被改进，扩大或重新安装非常容易地用常规的手动工具。转角板是同一的与中间体接头，有可靠的屏蔽衰减与支撑的壳体相等。下面有节点的例子。

Construction details施工详图
