We produce Faraday cages, shielded chambers and other shielding components like我们生产法拉第箱子，屏蔽室和其它的屏蔽部件，如:

• Power & signal filters电源和信号线滤波器
• Waveguides for data communication 用于数据通信的波导
• shielded doors屏蔽门
• Windows窗户
• Shielded ventilation panels屏蔽通风板.

In addition we produce, TEMPEST equipment for crypto communication and even welded EMP bunkers. We have a large standard range in stock and we can deliver to the cage building industry in mere days. We also design items according to the client’s wishes, with very short delivery times.
另外我们生产TEMPEST防信息泄漏设备用于保密机通信和即使是焊接的EMP箱体。

Wall covering system (Mu-copper)墙面材料系统（钼-铜墙纸）
Mu-Copper foil has high attenuation properties in the electrical field (up to 120 dB) as well as in the magnetic field (see shielding performance table).
钼铜薄片在电场（可达120 dB）以及磁场方面有高的衰减特性（看屏蔽性能表）
It is easy to apply, like wallpaper, thanks to its special adhesive for walls, ceilings and floors. The interior finish can be plaster board, foam tiles or plywood.
它是容易使用的，像墙纸，由于它的特殊黏合剂，用于墙、顶棚和地面。室内装修能是糊墙纸板，泡沫瓦片或胶合板。
The 0.12 mm thick Mu-Copper is used to transform regular rooms into shielded rooms; it has excellent shielding performance even at low frequencies. The system is easy to mount on shielded doors with clamping devices. The standard width of Mu-Copper is 1000 mm and the foil can be delivered on rolls or ready-made sheets.
0.12mm厚的钼铜被用于改变正常的房间成为屏蔽室，它有极好的屏蔽性能即使在低频。该系统用夹具是容易装配在屏蔽门上的。钼铜的标准宽度是1000mm，薄片的交货可以是卷状的或是预先做好的薄片。

Overlap options重叠选择
For the joints you can use a 50 mm overlap. For extra high performance you can fully solder the joint or use a seaming /copper tape with a conductive self-adhesive to apply over the joints.
对于接合处你能使用一个50mm的重叠部分。对于特别要求的高性能你可以完全的焊接结合点或使用一个带有自粘的接缝/铜带以应用在接缝点上。

Advantages优势

• Cost-effective / takes up little space 物有所值/占据很小的空间
• Light weight / high floor load 轻重量/高地板载重
• Can be constructed with local labor 能用本地的劳工建造
• Standard interior finish possible like plasterboard 标准的室内装修很像石膏板
• Can be delivered with 10 year guarantee 10年的保质期
• Maintenance free 维护方便
• Delivery with turnkey measurement report 交货时带有测量报告

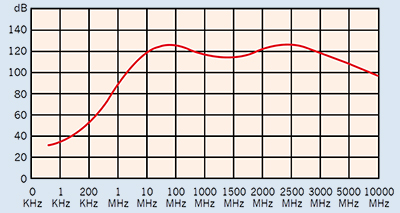

Shielding performance屏蔽性能

Basic values for the material and Mu-copper cage 用于材料和钼铜箱子的基值

Measurements according to MIL STD 285 and the following situation:测量依据MIL STD 285和下列的情形：

• Mu-copper foil 0.12 mm thick fully soldered 钼铜薄片0.12mm厚完全焊接
• Dimensions尺寸 10 x 6 x 4 m
• 1 Door门 0.9 x 2.1 m
• 2 Ventilation panels 通风板
• 4 Power filters电源滤波器

You can create a Faraday cage with high shielding performance yourself in an economic way, using local labor. This is possible in existing buildings as well as in new ones, without loss of space. Depending on the quality of the doors, vent panels, filters and/or windows used, attenuation levels up to 80-100 dB in the E-field can be realized. When more layers are applied, it is possible to achieve over 120 dB.
你能自己用一个经济的方法建造一个法拉第箱子，使用本地的劳工。这个可以用在现有的建筑以及新的建筑，没有损失空间。依据使用的门、通风板、滤波器和/或窗户的质量，可以实现在E场的衰减级别可达80-100 dB。当使用多层时，它可以实现在120 dB以上。
