2600 - Circular series环形系列 0.8 - 6 mm gab间隙
For round contacts用于圆形接触
Items marked bolt are stock items.项目标记为黑的字体的是存货项目。

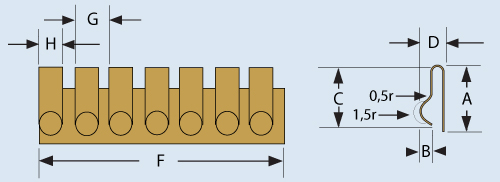

Circular finger 2601环形指形
Part number零件号 |
A |
B |
C |
D |
F |
G |
H |
|
2601-01 |
8,7 |
1,0 |
- |
- |
406 |
1,5 |
1,0 |
|
2601-02 |
9,5 |
1,0 |
1,2r |
- |
500 |
1,5 |
1,0 |
|
2601-03 |
9,7 |
1,3 |
- |
- |
406 |
1,9 |
1,3 |
|
2601-04 |
13,5 |
1,3 |
- |
- |
406 |
1,9 |
1,3 |
|
2601-05 |
14,0 |
1,1 |
1,5r |
1,5r |
500 |
4,0 |
3,0 |
|
2601-06 |
14,1 |
0,8 |
2,0r |
- |
500 |
2,0 |
1,5 |
|
2601-07 |
18,5 |
1,1 |
1,5r |
1,5r |
500 |
4,0 |
3,0 |
|
2601-08 |
19,1 |
3,1 |
- |
- |
406 |
4,8 |
3,6 |
|
2601-09 |
22,6 |
3,0 |
- |
- |
406 |
4,8 |
3,6 |
|
2601-10 |
30,0 |
3,0 |
2,5r |
- |
500 |
4,0 |
3,0 |

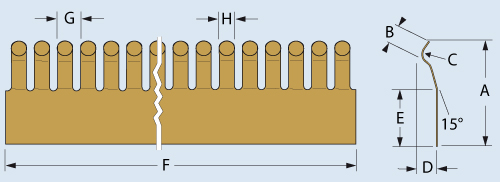

Circular finger 2602环形指形
Part number零件号 |
A |
B |
C |
D |
E |
F |
G |
H |
|
2602-01 |
9,2 |
1,0 |
1,2r |
2,5 |
3,6 |
500 |
1,5 |
1,0 |
|
2602-02 |
13,8 |
1,1 |
1,5r |
- |
8,0 |
500 |
4,0 |
3,0 |
|
2602-03 |
13,9 |
0,8 |
2,0r |
3,0 |
6,0 |
500 |
2,0 |
1,5 |
|
2602-04 |
18,3 |
1,1 |
1,5r |
- |
8,0 |
500 |
4,0 |
3,0 |
|
2602-05 |
27,4 |
3,0 |
2,5r |
11,0 |
10,0 |
500 |
4,0 |
3,0 |

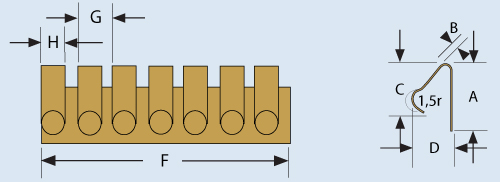

Circular finger 2603环形指形
Part number零件号 |
A |
B |
C |
D |
F |
G |
H |
|
2603-01 |
5,5 |
1,0 |
3,9 |
2,1 |
500 |
2,0 |
1,5 |
|
2603-02 |
7,8 |
0,8 |
6,0 |
2,5 |
500 |
1,5 |
1,0 |
|
2603-03 |
11,0 |
1,1 |
8,0 |
- |
500 |
4,0 |
3,0 |
|
2603-04 |
15,0 |
1,1 |
8,0 |
- |
500 |
4,0 |
3,0 |

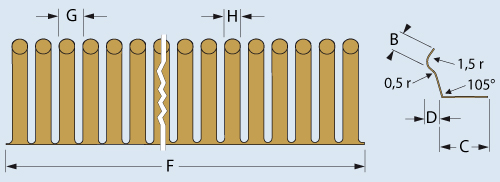

Circular finger 2604环形指形
Part number零件号 |
A |
B |
C |
D |
F |
G |
H |
|
2604-01 |
4,8 |
2,3 |
4,1 |
- |
406 |
1,5 |
1,0 |
|
2604-02 |
6,6 |
2,8 |
5,8 |
- |
406 |
1,9 |
1,3 |
|
2604-03 |
7,0 |
0,8 |
6,5 |
2,6 |
500 |
1,5 |
1,0 |
|
2604-04 |
9,1 |
1,1 |
7,7 |
4,5 |
500 |
4,0 |
3,0 |
|
2604-05 |
11,2 |
- |
8,2 |
4,1 |
406 |
2,4 |
1,6 |
|
2604-06 |
11,5 |
1,1 |
9,8 |
4,5 |
500 |
4,0 |
3,0 |

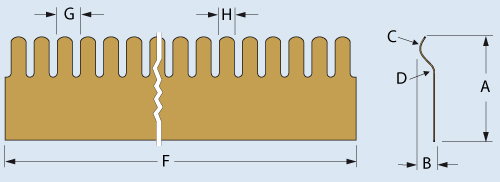

Circular finger 2605环形指形
Part number零件号 |
A |
B |
C |
D |
F |
G |
H |
|
2605-01 |
7,0 |
0,8 |
5,5 |
4,9 |
500 |
2,0 |
1,5 |
|
2605-02 |
9,5 |
1,1 |
6,4 |
7,0 |
500 |
4,0 |
3,0 |
|
2605-03 |
12,0 |
1,1 |
8,4 |
8,0 |
500 |
4,0 |
3,0 |
