2400 - Twisted series 0.2 - 1.8 mm弯曲指形系列
For small gaps and screwed applications用于小的间隙和螺丝拧紧的应用。

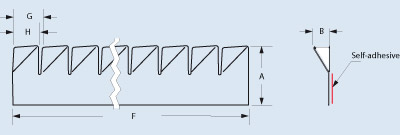

弯曲指形系列Twisted 2401
A double row of contacts in one narrow shield strip. Mounts securely with standard Instant Tac adhesive. Optional poron rubber Enviroseal protects against moisture, dust and other contaminants.
一个双触排在一个窄的屏蔽带里。安装是牢固的用标准的即干性Tac黏合剂可选择poron橡胶有毒的保护以防潮湿，灰尘和其它的污染物。

Also available in continuous length rolls也可获得连续长度的卷.

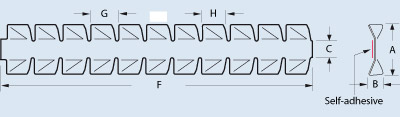

弯曲指形系列Twisted 2402
For areas where a small dynamic range is required, and where the shield in its "compressed state" will not extend beyond its uncompressed dimension "A." Mounting is simple with standard Instant Tac adhesive. Optional poron rubber Enviroseal protects against moisture, dust and other contaminants. Also available in continuous length rolls.
用于要求一个小的动态范围的领域，这里屏蔽在它的“被压缩状态”里不被扩展到它的没有压缩的范围“A”。安装是牢固的用标准的即干性Tac黏合剂可选择poron橡胶有毒的保护以防潮湿，灰尘和其它的污染物。也可获得连续长度的卷。

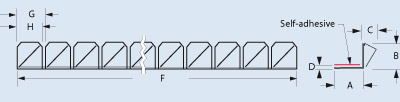

弯曲指形系列Twisted 2403
For applications where side mounting is required. See "G" dimension. Mounts securely with Instant Tac adhesive which adheres to the surface perpendicular to the area where compression contact occurs.
应用于要求侧面装配的情况。看“G”尺寸。安装是牢固的用即干性Tac黏合剂遵循表面垂直于压缩接触发生的区域。

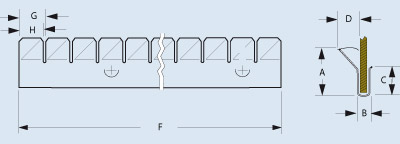

弯曲指形系列Twisted 2404
For applications where a small dynamic range is required and a clip-on mounting is preferred. Mounts simply by pressing into position.
对于应用在要求一个小的动态范围和一个夹式安装是首选。安装简单，通过将其压进位置里。
