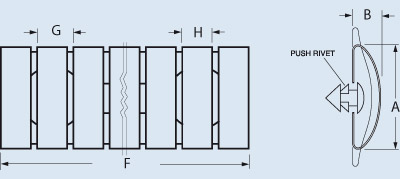

Mounting by holes in your construction装配通过在你的结构里的安装孔。
You can mount by pusshing in position, see picture below你能通过在位置里推进进行装配，看下面图片

Very low compression force and no friction drag when compressed. Excellent for "sliding" applications. Symmetrical design allows bi-directional contact engagement. Very handy for ESD grounding or RFI/EMI shielding on:
当被压时有非常低的压力和没有摩擦力。卓越的用于“滑动的”应用。对称的设计允许双向接触衔接。非常方便的用于ESD接地或RFI/EMI屏蔽：

1. Enclosure Doors机壳门
2. Enclosure Panels机壳面板
3. Chassis Covers 机壳盖
4. Back Panels 背板
5. Rack Drawers 机架抽屉
6. Plug-In Assemblies插入部件

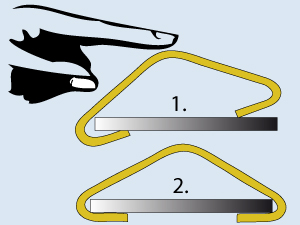

Installation is simple:安装简单

1. Insert one edge into one of the slots 插入一个边缘进入到一个槽内。
2. Push in the direction of the slot until the second edge snaps through the slot朝槽内推进直到第二个接头通过槽。

Part numbers marked bolt are stock items.零件号标记黑色字体的为存货项目。

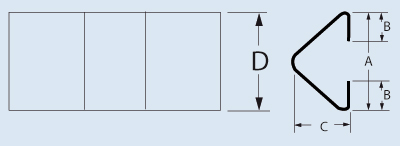

Snap On 2201扣紧

Snap On 2202扣紧

Snap On 2203扣紧

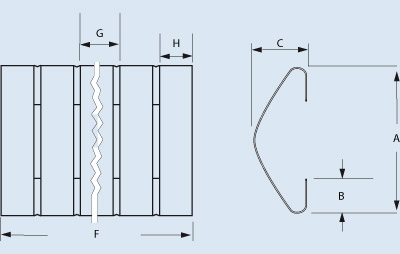

Low profile of .080" (2,0mm) allows practical installation and compression action in very minimal gap situations.
.080" (2,0mm)的低的剖面允许实际安装和挤压作用在非常小的间隙位置。
Long, slender finger profile yields very low compression forces and high endurance life. Works very well with "wiping" application.
长而薄的指形剖面产生非常低的压力和高的疲劳寿命。非常好的工作于摩擦接触应用。

Example举例
When you want to order snap-on fingerstrip 2202-02 then please specify the part number and the amount that you need.
当你想订购直接固定指形簧片2202-02，那么请指定零件号和你需要的数量。
