V-shape gasket 8700 V形垫圈

For doors, extremely low closure force 用于门，非常低的闭合力

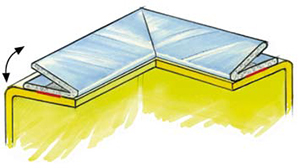

The 8700 series V-shape gaskets are characterised by a very large compression range and low closure force. They come with a self-adhesive strip for easy mounting. The most common version is with conductive Nickel over Copper textile (T). The version with highly conductive Amucor foil (A) is designed especially for a combination with aluminum and zinc plated steel. To prevent loss of material and for easy shipping we can cut exact lengths. Maximum lengths 2.5 meter.

8700系列V形垫圈是非常有特点的，具有一个非常大的压缩范围和低的闭合力。它们可一起供应一个自粘条为了便于装配。最通用的版本是在铜织物的上面带有导电镍。带有高导电性的Amucor薄片的版本特别设计用于有铝和锌钢板的组合。以保护材料的损耗和为了方便运输我们能切成精确的长度，最大长度为2.5米。

Also available with a resilient foam rubber insert (i) for more compression just at the moment of closing.

而且可获得带有一个弹力泡沫橡胶垫用于在闭合上有更多的压缩。

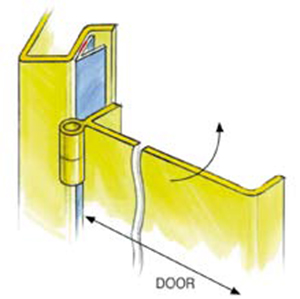

The 8700 series is flame retardant, which can be supplied in a UL94V-0 compliant version. If applied as shown in Fig. 3, excellent shielding can be achieved without any permanent closure force. This construction prevents bending of doors, so the enclosure can be less rigid. Also for hinges and locks.

8700系列是阻燃剂的，能被供应以一个UL94V-0符合性的版本。图片3里显示为应用情况，卓越的屏蔽能被实现没有任何固定的闭合力。这个结构防止门的弯曲，因此壳体能更少的不弯曲。而且用于小五金和锁。

Shielding performance屏蔽性能

Standard dimensions标准尺寸
(Bold itemst are stock items黑体项目是存货项目)

Benefits好处

1. Self-adhesive 自粘
2. Easy to fit 容易装配
3. Allows large tolerances 允许大的公差
4. High shielding performance 高的屏蔽性能
5. Very high deflection 非常高的弯曲度
6. Low closure force 低的闭合力

Example举例
Part number 87107 with conductive textile and resilent insert at a lenght of 1940 mm: 87107-T-i-1940
零件号87107带有导电织物及复原插件在长度1940mm：87107-T-i-1940
