Any size you want!任何你想要的尺寸！
High deflection - low closure force gaskets without tooling costs高挠度-低闭合力垫圈没有工具加工成本

A new CNC extrusion system has been developed to manufacture EMI shielding gaskets in a wide range of shapes and dimensions. With this system there are no tooling costs, so it is also interesting for smaller quantities or special constructions. The metal-cladded flame retardant gasket can be manufactured in several rigidities and is very compatible with aluminium, zinc-plated steel, Aluzinc, stainless steel, copper, etc.
一个新的CNC计算机数控挤出系统已经被发展制造EMI屏蔽垫圈在一个宽的形状和尺寸范围。用这个系统没有工具加工成本，因此它也是有兴趣于更小的数量或特殊的结构。该金属铠装的阻燃剂垫圈能被制造用几个刚度及是非常适合于铝，锌板钢，不锈钢，铜，等等。
Enclosures can be constructed more cost-effectively and compactly and the (electrically conductive) self-adhesive strips will reduce production time. The material is non-toxic and is an excellent replacement for the environmentally polluting beryllium gaskets.
外壳能被构造的更经济和简洁及（电传导）自粘条将减少生产时间。材料是无毒的及是一个卓越的替代对于有关环境方面的污染铍垫圈。
Available in dimensions from 1.7 - 30 mm, with or without separate water seal. The gaskets can be supplied in lengths according to customer specifications.
可获得的尺寸从1.7到30mm，有或没有分离的水封。该垫圈能被供应的长度根据客户的规格说明。

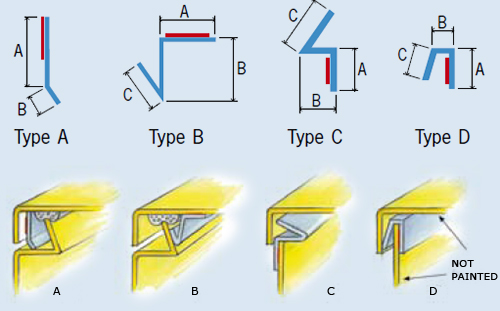

Standard shapes are available for 19" racks, watertight enclosures and PCB shielding.
标准形状可获得用于19英寸机柜，水密的外壳和PCB屏蔽。

Standard partnumbers标准零件号

Shielding performance

Benefits好处

1. No tooling costs 没有工具加工成本
2. A wide range of shapes  一个宽范围的形状
3. Self-adhesive gasket  自粘垫圈
4. Easy to fit  容易安装
5. Small dimensions  小尺寸
6. Very high deflection 非常高的挠度
7. Low closure force 低的闭合力

Options选件

1. Cut into accurate lengths 切割成精确的长度
2. Combination with water seal 兼具水封
3. UL94V-0 compliant flame retardant 依从阻燃剂
4. Chemical resistant versions 耐化学版
5. Resistent to high temperatures 耐高温
6. Different conductive foils and fabrics 不同的导电箔和织物

Example举例
Customized gasket 8800, type B, 15, 15, 12 mm made of conductive textile.
定制垫圈8800，类型B，15,15,12mm由导电织物制造
