Water sealing EMI gaskets for screwed applications like panels, displays and windows
水封EMI垫圈用于螺丝拧紧的应用，如面板，显示器和窗户

The 7300 series EMC / IP gaskets are cost-effective combinations of an EMI shielding gasket and a water seal. This type comes with a self-adhesive strip.
7300系列EMC/IP垫圈是一款经济的有一个EMI屏蔽垫圈和一个水封的制品。这个类型一起供应一个自粘带。
The gasket consists of two neoprene foam cores, one of which is covered with reinforced foil, based on the high performance Amucor alloy. Amucor is good compatible with aluminium and zinc plated steel. For aluminium with alochrome or stainless steel it is better to use highly conductive textile. The two parts can deflect independently to guarantee optimal shielding and sealing performance. Sharp inside corners can be made easily, without interrupting the water seal. For special applications, different foam cores and conductive foils and fabrics are available.
该垫圈的组成由两个氯丁（二烯）橡胶泡沫核，一个被覆着加固箔片，基于高性能Amucor合金。Amucor与铝和锌钢板是好的兼容。对于铝与铬或不锈钢，它是更好的使用高导电织物。这两个部分能独自地偏转以确保最佳的屏蔽和密封性能。内棱角锐角能容易地制作，没有中断水封。对于特殊的应用，不同的泡沫核和导电箔和织物可获得。

Benefits好处

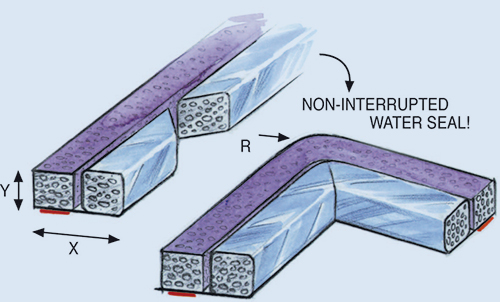

1. Bends easily around sharp corners without interrupting the water seal. 弯曲容易地围绕锐角转角没有中断水封。
2. Excellent water sealing up to IP65 (depending on construction).卓越的水封性，可达IP65（依据结构）。

Shielding Performance屏蔽性能
Shielding effectiveness depends on surface, shape of gaskets and materials used.屏蔽效能依据表面、垫圈的形状和使用的材料。

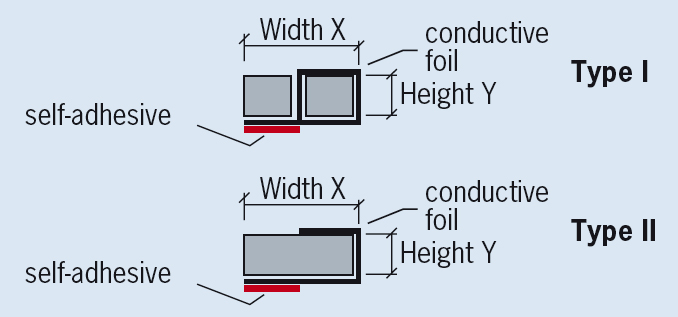

Construction结构

Partnumbers零件号

Example举例
Please specify your choise of T (Textile) or A (Amucorfoil). Please indicate whether two separate parts are desired (Type I) or one piece (Type II).
请确定你的选择：T (Textile) or A (Amucorfoil).请指出是否是两个分离的部分(类型I)或一部分（类型II）。
For example: Height Y 5mm, Width 10 mm with Amucor foil in two separate parts: 73-5-10-5-A-II.
例如：高度Y 5mm，宽度 10mm，用Amucor箔，用两个分离部分：73-5-10-5-A-II.
