This range of easily mounted clip-on gaskets is composed of a separate sponge rubber water seal and an EMI-shielding side of highly conductive, wear-resistant metallized fabric. The construction is very flexible thanks to the hollow rubber, so a low closure force is guaranteed.
这个系列的容易装配的夹式垫圈由一个分开的海绵状橡皮水封和一个EMI屏蔽侧边的高度导电的，抗磨损的用金属处理的织物组成。结构是非常软的由于是空的橡胶，因此确保了一个低的闭合力。

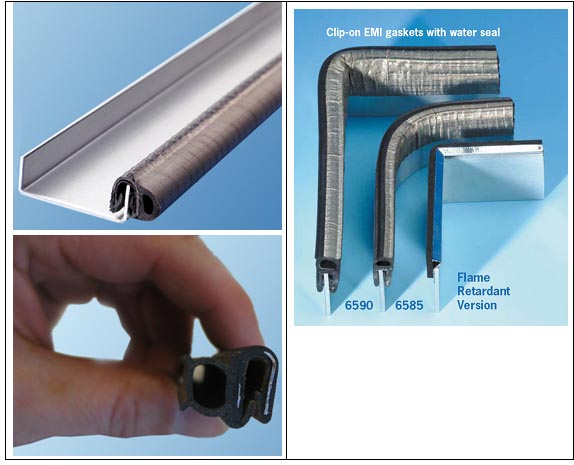

The gasket is assembled without tools, simply by pressing the section by hand onto the metal flange of you enclosure. Different sizes are available on request. The gasket can make angles in two planes where a small radius is sufficient. Temperature range from -40° tot +110° C. A flame retardant version (UL94 V0) is also available (see on the picture below).
垫圈的装配不用工具，简单地通过手在你的机壳金属凸缘上压紧。根据需求可获得不同的尺寸。垫圈能被做成角度在两个平面里，这里是一个足够小的半径。温度范围从-40° tot +110° C。一个阻燃剂版本（UL94 V0）也是可以获得的（看下面的图片）。

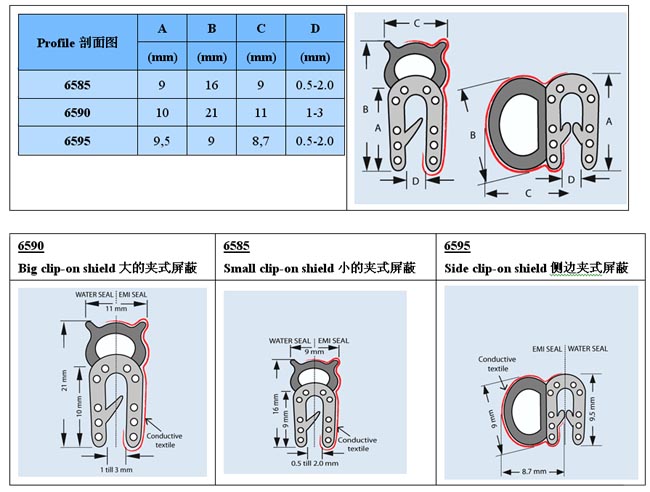

Dimensions尺寸

Shielding Performance屏蔽性能

Shielding effectiveness depends on surface, shape of gaskets and materials used.
屏蔽效率依据表面，垫圈的形状和使用的材料。

Example例子
Please indicate the profile number followed by the length in meters.请下面的指出剖面号，长度是米。
